Mini Digital Level Box +/-180 Degree Range Angle Finder

Model NO.: TT-360X
Measure Method: Manual
Accuracy: A
Precision Measuring Device: Precision Measuring Device
Customized: Customized
Color: Black
Trademark: No
Transport Package: 1PCS+Paper Box
Specification: 51 x 51 x 33mm (2 x 3 x 1.3 inches)
Origin: China
HS Code: 902780990

Mini Digital Level Box +/-180 degree (0~360degree) Range Angle Finder Tilt Gauge with Magnetic base + V-groove TT-360X



Digital angle gauge with level is an innovative tool that provides digital reading between ±180.00° exclusive . Flip-up display adds convenience when reading result.Small and light,it is real easy to be carried and used.Strong magnetic makes it easily to stick to the surface to be measured.V-groove on the magnetic base makes it easy to stick on pipe or cylindrical surface.

Application:
  • Works great for minter saws and table saws.
  • Sets the angle of jointer fences and band saw tables
  • Machine cone bevel measuring and bevel measuring in processing
  • Telecommunication industry : Radar antenna angle calibration,elevation measuring for secondary planet antenna and television receiver
  • Automobile : four-wheel location,pavement control and leveling for construction vehicles

Features:
  • Strong magnetic base with v-groove
  • Flip-up LCD
  • ±180°Range
  • Repeatability : ±0.1°
  • Hold Function
  • Relative angle reading
  • Bubble icon for digital level are always set in Dead Level
  • Digital Tilt Gauge compared to set in Dead Level
  • Low battery indicator

Specifications
  • Measuring range : ±180.00°
  • Resolution : 0.1°
  • Repeatability : ±0.1°
  • Working current : <100µA
  • Dimension : 51 x 51 x 33mm (2 x 3 x 1.3 inches)
  • Power : 2 x AAA battery (not included)

Set Includes:
  • 1 x Digital Angle Finder with Digital level & Tilt Gauge
  • 1 x English User's Manual

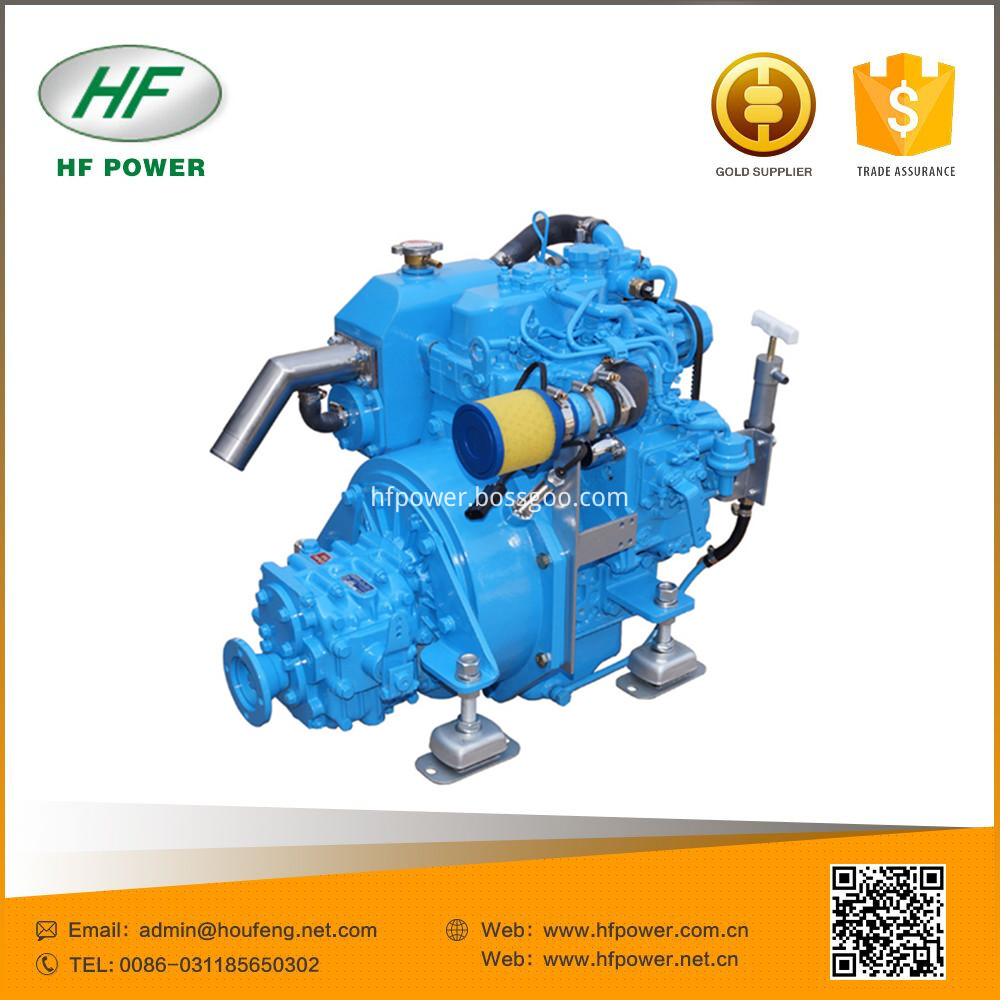

we can supply you the Marine Engine with gearbox( Boat Engine ) ,Inboard Boat Motor, propeller and shaft , if you need any of them , please contact me. We are the only one factory that can supply you the Complete Marine Engine .

The model Diesel Engine are designed according to the use requirements and the structure features of the marine engine .  After we optimized the design for the matching parts, the main features of this type diesel engine are the stronger power , the bigger continuous output and the lower fuel and oil consumption . we fix the stainless pipe on this model diesel engine and adopt the Dacromet technology on the surface in order to prevent the corrosion. This diesel engine is reliable and durable . There is a small window on the sid of the diesel engine to maintain easily . Because the diesel engine came out in serial form, the matching parts are in common use, it is convenient to supply the matching parts . The flywheels power take-offs can be equipped with the outboard machinery or engine-mounted marine gearbox .The diesel engine used for marine have two kinds of configuration , one is the simple configuration, which is without a heat exchanger and a water cooled exhaust manifold , the other is the complex configuration , which with a heat exchanger and a water cooled exhaust manifold .
